Custom triggers

Engage’s automation functionality lets you create individual marketing journeys for every contact in your system. Purchases, birthdays and other events can act as triggers to start up automated flows based on a specific contact’s data.

You can also set up your own custom triggers that can be used to manually start automations. For example, if you want to use some event in your POS that doesn’t have a built-in trigger in Engage, a custom trigger is how you can do it.

Setting up custom triggers

You can set up custom triggers yourself in Config Hub (the Engage configuration area).

Read more about Config Hub

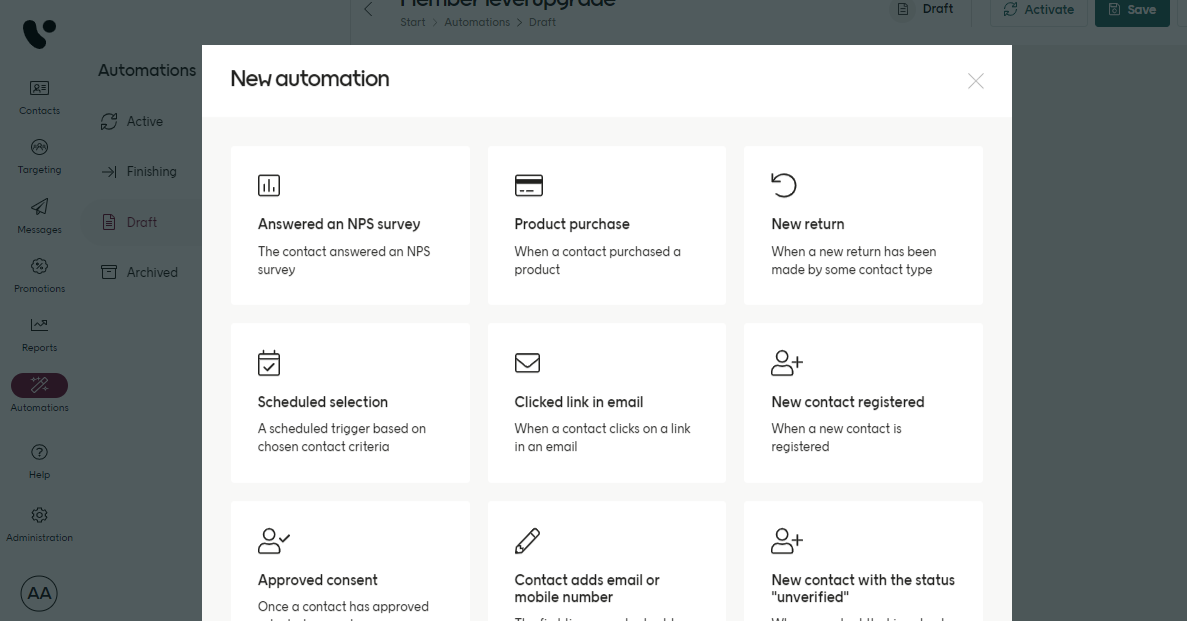

Once a custom trigger is set up, you can find it in Engage when you select “New automation”. Here you can see the list of all the triggers available, with the standard ones located on top.

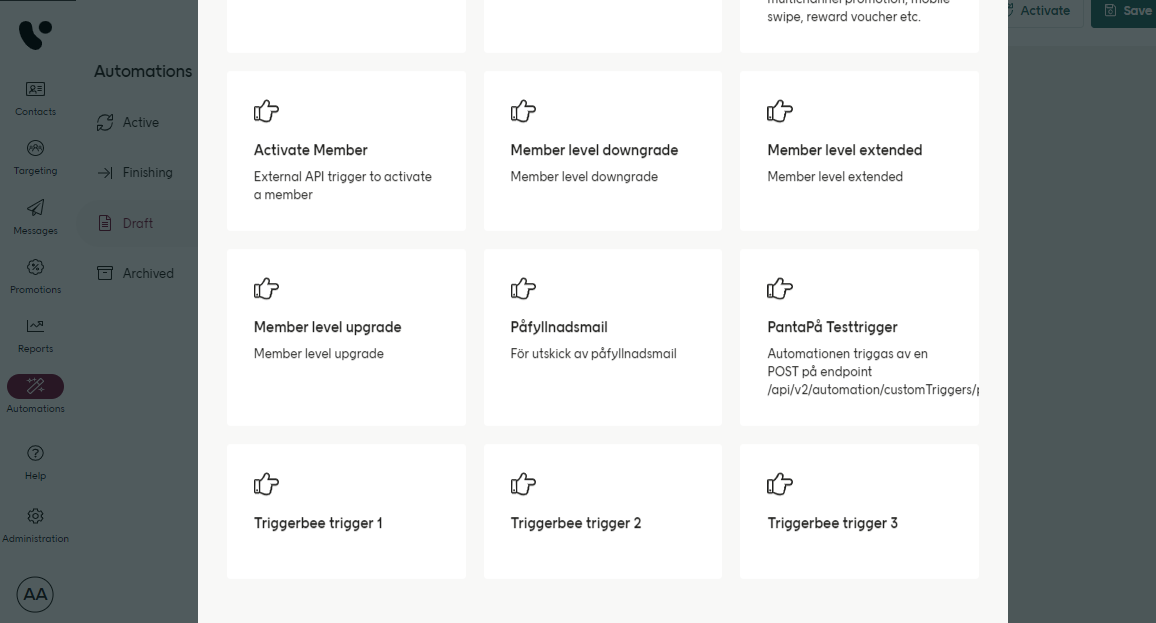

At the bottom of this list, you should find your custom trigger or triggers.

From this point on, your custom trigger can be handled like a standard one. Use it to create an automation, and create branches based on the incoming data.

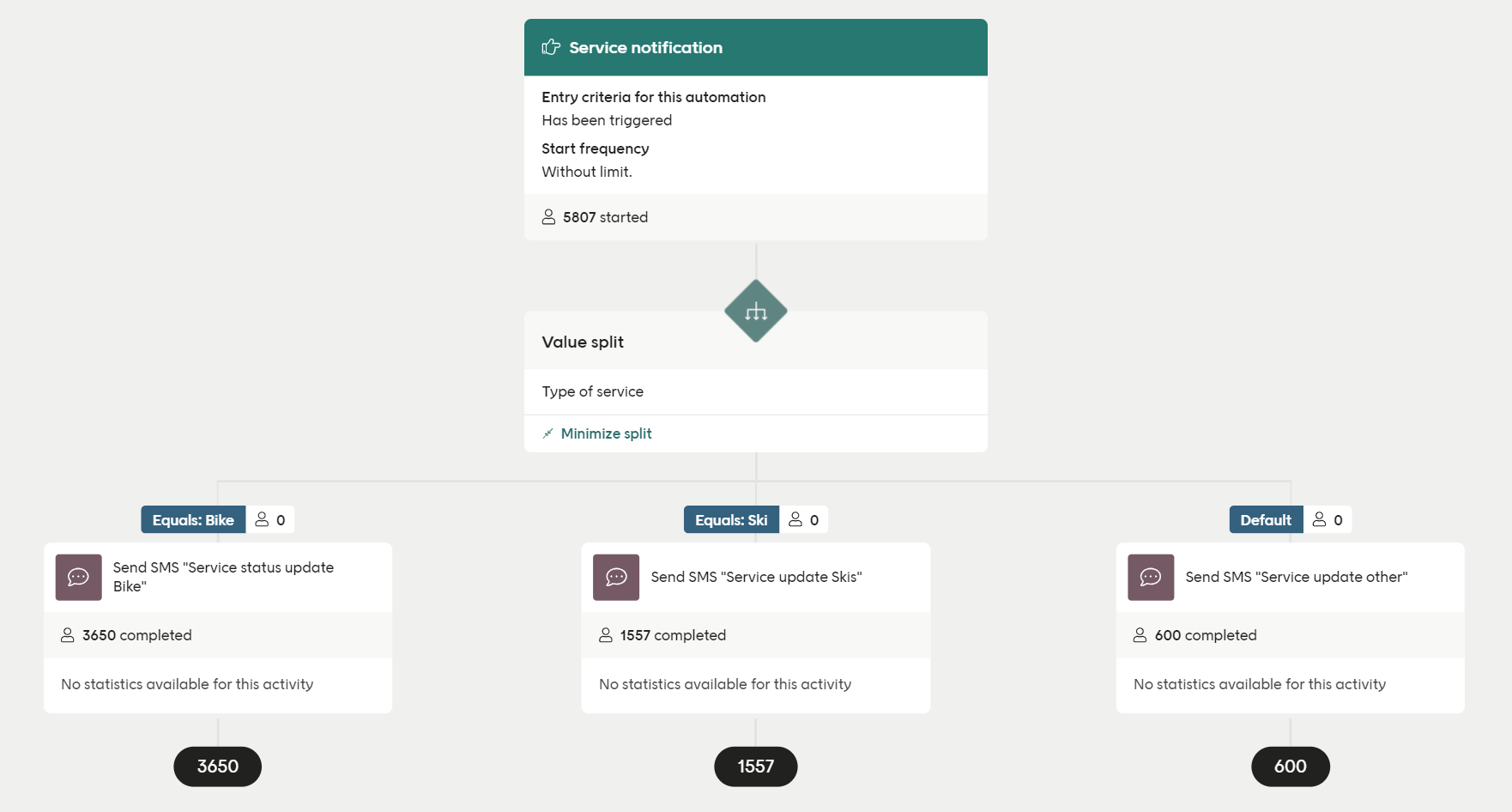

Here is how a custom trigger automation looks:

When this trigger is activated, contacts are moved into one of three branches, depending on a keyword found by a valuesplit (“Bike”, “Ski” or everything else) and then sent an SMS. The number of contacts directed into each of the three branches can be seen, as well as the total number who triggered this automation.

The important points to remember about custom triggers are:

• They are called over the API using triggerId plus some identifier (contactId or another key)
• They can receive JSON data (data fields), the structure of which is defined per custom trigger

The data fields in your custom trigger can be used both for filtering in the automation and also as variable data in the content produced by the automation.

Using a custom trigger

In Engage, you can set up as many custom triggers as you want, as long as each triggerId is unique.

Some identifying value for the contact also needs to be sent (contactId or whatever is configured). The key used should be decided in collaboration with your Voyado team.

A custom trigger can only be triggered for an contact that exists in Engage.

There are a few ways to activate a custom trigger over the API, depending on what information you have:

If you know the contact ID

POST /api/v3/automation/customTriggers/{triggerId}/triggerByContactId/{contactId}

If you know contact type and the key identifer value

POST /api/v3/automation/customTriggers/{triggerId}/triggerByContactTypeAndKey/{contactType}/{keyValue}

If you know the external contact ID

POST /api/v3/automation/customTriggers/{triggerId}/triggerByExternalContactId/{externalId}

If you know the personal identity number

POST /api/v3/automation/customTriggers/{triggerId}/triggerBySocialSecurityNumber/{ssn}

Examples of values

Name	Type	Example value
triggerId	String	aCustomTrigger
contactId	GUID	a67f201f-d86d-4ee2-bdc7-abce4444a804
contactType	String	Member
keyValue	String	mobilePhone
externalId	String	012345
ssn	String	198101010101

Payload example

Custom triggers are often used for transactional communication from the e-com or business layer to the end user. In these cases, a payload is often sent. Below is an example of the setup in the backend for a custom trigger that is used to populate a reset password email.

Custom trigger payload example

{
    "oldAccount":"true" OR "false",
    "username":"[username]",
    "resetUrlHTML":"[http address of unique reset link]"
}

The value of the oldAccount flag can be used to filter different kinds of communication or trigger a specific automation. All automations using a certain trigger will listen for any responding API call but only the responding data sent in the payload will start the specific automation.
